[GATE] ASTER V2 Basic Module W/ Basic Firmware Edition][Rear Wired]

Item No.: AA#11477

Factory Code: AST2-BMR

Brand: GATE

  • Sale
  • Regular price $108.30

[GATE] ASTER V2 Basic Module W/ Basic Firmware Edition][Rear Wired]

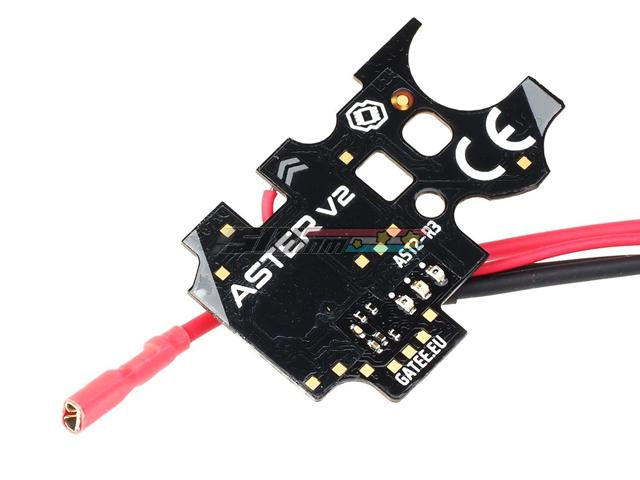

  • ASTER V2 is a younger brother of well-known TITAN V2. This world's first 4th generation AEG Control System is destined for most of AEGs with gearbox V2 on the market (including stock, low- and mid-tuned) and even for high-tuned guns (in case of EXPERT firmware). It was designed to achieve maximum reliability at an attractive price and hence it has an extremely profitable price-performance ratio.
  • Transform your AEG by replacing trigger contacts with computerized controller equipped with innovative optical sensors, including proximity trigger sensor which offers even 250 sensitivity settings. Gain a unique tactical advantage thanks to the extremely fast trigger response and lots of other useful functions. ASTER's smart fuse protects your AEG?s battery, motor, and the controller, even in case of reverse battery connection. This feature, along with the optical sensors, makes ASTER the most durable drop-in unit on the market. You choose how to configure ASTER - simply via trigger or through USB-Link / Blu-Link* and our advanced GCS app. To enjoy the full potential of ASTER, you can upgrade its firmware to ADVANCED or EXPERT.

What makes ASTER so special?

  • Protection against battery reverse polarity
  • Proximity trigger sensor which offers even 250 possible sensitivity settings
  • Option to configure its main settings simply via trigger or completely through GATE Control Station app for Android, Windows, and macOS (also for iOS in 2020 after Bluetooth® adapter release)
  • Built-in RGB led makes programming easier
  • Removing of safety lever is not required
  • No modification of gearbox shell needed, even in case of KRYTAC* and ICS (*when bolt catch lever is removed. This applies to ASTER R1. Next ASTER revisions will be fully compatible with KRYTAC gearbox)
  • Optical gear cam sensor supports all types of gears: Infinite Torque-up, DSG, SSG, 19-tooth, and standard
  • Binary trigger function as a basic function
  • Premium level functionality at fair price ??extremely profitable price-performance ratio
  • GCS app allows for making firmware updates via the internet, which enables improvements

GATE Control Station

ASTER and GATE Control Station give you total control of your AEG. The GCS offers you the option to:

  • control your airsoft gun from a smartphone with Android (also with iOS in 2020 after Bluetooth® adapter release) and PC with Windows or macOS
  • update and upgrade firmware
  • see Statistics
  • perform diagnostics and send reports

GATE Control Station PC download page.
GATE Control Station Android download page.



With the GCS you can easily calibrate and adjust sensors.

The trigger sensor offers you even 250 possible sensitivity settings. You can choose one of two trigger modes:

  • 1-stage: standard
  • 2-stage: the first stage is SEMI or BURST, the second stage is BURST or AUTO

The selector sensor gives you an option for fine calibration of the selector switching point.


Programming via Trigger

The following ASTER options can be programmed via trigger:

  1. Fire mode ??blue (unavailable for regional lock)
    1. SAFE / SEMI / AUTO
    3. SAFE / SEMI / SEMI
    4. SAFE / SEMI / BURST
    5. GCS setting
  2. Burst ??bright blue (unavailable for regional lock)
    1. 3rd, Full
    2. 3rd, Trigger
    3. 5rd, Full
    4. 5rd, Trigger
    5. GCS setting
  3. Battery protection ??green
    1. Off
    2. LiPo
    3. LiPo with 3.2 V warning
    4. GCS setting
  4. Active brake ??pink
    1. Auto
    2. Off
    3. GCS setting
  5. Advanced settings ??orange
    1. Read DTC
    2. Clear DTC
    3. Restore default settings
    4. Restore factory settings


  • Part No.: AST2-BMR
  • Support for stock and mid-tuned AEGs (high-tuned AEGs are supported in case of EXPERT firmware edition)
  • Maximum operating voltage: 12.75V (LiPO 11.1V)
  • Minimum operating voltage: 3V
  • Absolute maximum voltage: 17V
  • Conformal coating (Military Specification MIL-V-173C) ??resistance to atmospheric conditions
  • Weight: 200g*
